Specification Description of Punching Mesh
|
|
|
|
Material
|
|
|
|
Plate thickness or plate number
|
|
|
|
Width & length
|
|
|
|
Margin leaving
|
|
|
|
Hole arrangement
|
|
|
|
Hole diameter & centre-to-centre distance
|
|
|
|
Cutting & bending
|
|
|
|
Post-treatment
|
|
|
|
Packaging
|
|
|
|
|
|
|
|
|
|
|
|
|
Material Top
|
Baima Wire Mesh Manufacture Co., Ltd. can apply different kinds of plates in punching; the conventional ones are listed below:
|
|
Carbon steel plate
|
|
Galvanized plate
|
|
Stainless steel plate
|
|
Aluminum plate
|
|
Aluminum galvanized plate
|
|
|
|
|

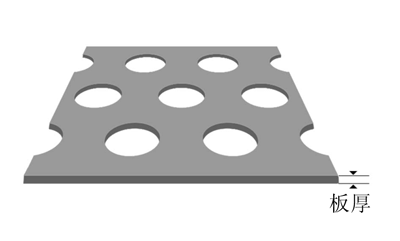

Plate thickness or plate number Top
The plate thickness of punching meshes will not change during punching. The thickness is generally represented by plate number; please refer to plate thickness checklist. However, the thickness is more often represented by "MM" and "INCH" in order to express more clearly.。
|
|
|
|
|
|
|
Width & Length Top
|
|
The conventional widths and lengths are listed below:
|
|
1000MM X 2000MM 1220MM X 2440MM 1250MM X 2500MM
|
|
1250MM X 6000MM 1500MM X 3000MM 1500MM X 6000MM
|
|
Baima Wire Mesh Manufacture Co., Ltd. is perfectly capable of manufacturing products of other sizes at the request of customers.
|
|
|
|
|
|

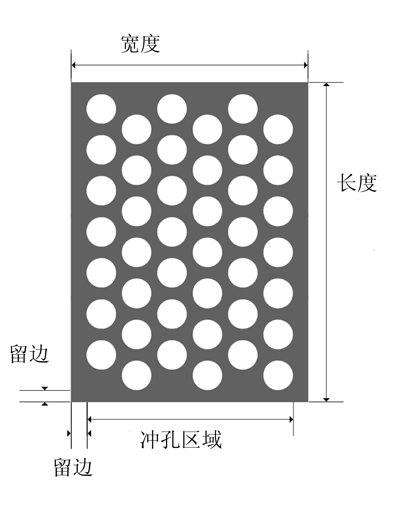

Margin leaving Top
|
|
Margin leaving generally refers to the non-punched area of the punching mesh margins. Generally, a 20 mm-margin is left in the length direction; either completely punching (without margin) or leaving margins according to customer requirements can be realized in the width direction.
|
|
|
|
|
|
|
Hole Arrangement Top
|
|
Generally, round holes can be arranged in the following 3 modes:
|
|
Other hole patterns and arrangements can be customized according to customer requirements.
|
|
|

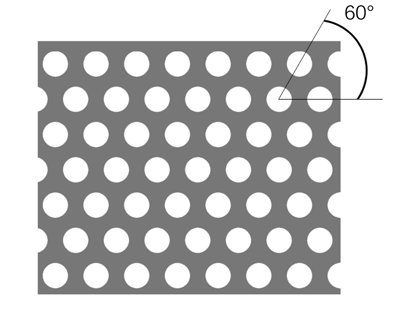

Round Hole, 60°， Staggered
|
|
|

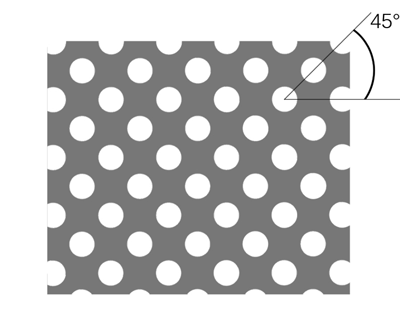

Round Hole, 45°， Staggered
|
|
|

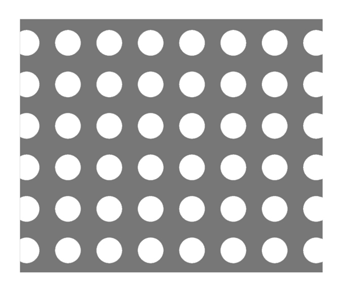

Round Hole, Straight Row
|
|
|
|
|
|
|
|

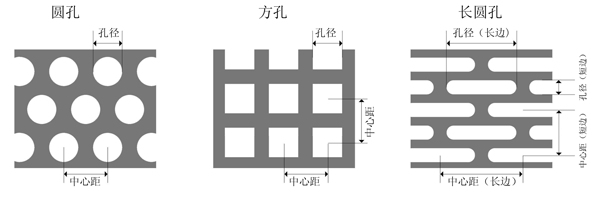

Hole Diameter & center-to-center distance Top
|
|
|
|
|
|
|
Cutting & Bending Top
|
|
Baima Wire Mesh Manufacture Co., Ltd. can cut and bend punching meshes according to customer requirements.
|
|
|
|
|
|
Post-treatment Top
|
|
Baima Wire Mesh Manufacture Co., Ltd. is capable of the following post-treatments according to specific requirements of customers:
|
|
No Treatment
|
|
Most of the punching meshes are required to keep the natural state without any treatment after punching whatever materials they are of.
|
|
Oil Spraying
|
|
Since the goods may be wetted in the containers by seawater during the long-time transport by sea, some customers require the iron plate punching meshes to be sprayed in order to prevent the goods from rust.
|
|
Plastic Spraying/ Plastic Dipping
|
|
Baima Wire Mesh Manufacture Co., Ltd. can customize plastic spraying/ plastic dipping of various colors according to customer requirements. However, for some special colors, there may be required on minimum order quantity.
|
|
|
|
|
|
Packaging Top
|
|
Punching meshes are generally packaged with wooden pallets packed with blister cards, each with a bearing capacity of 1 to 2.5 tons.
|
|
If customers have special requirements for packaging, e.g. requiring pallets welded by iron pipes, we promise to satisfy such requirements with the costs slightly increased.
|
|
|
